A HSMS simulator system is the optimal system for the simulator examination of HSMS-SS protocol communication. A HSMS-SS (SEMI E-37 conformity) protocol is a protocol used for the on-line communication between equipment with a host in liquid crystal, a chip fabrication factory, etc.
The HSMS simulator system is realized in the following four programs.
When you use a HSMS simulator system, please click the following "HSMS Simulator System Setup Kit download" buttons, and download a file required for the setup of a HSMS Simulator. Please refer to "Readme.txt" about the details.
VC++ sample codes are now included in the Setup Kit.
Please E-mail ”” the inquiry.
(five license: \147,000 Japanese Yen)

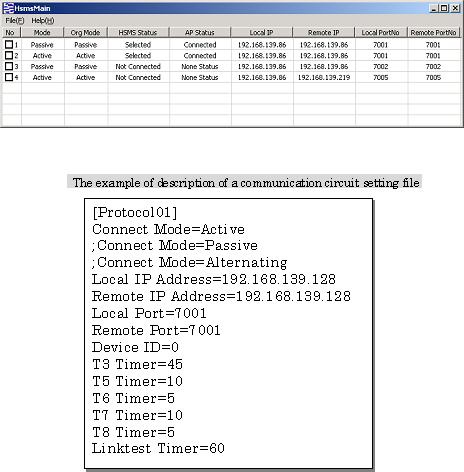

HSMS Main Program
About a HSMS Main Program
A HSMS main program is a program which performs starting and closing of a HSMS driver. The state and each status of a circuit are displayed. Usually, it resides in the task tray permanently.
The feature of a HSMS main program
The state and setting information on each circuit are displayed direct.

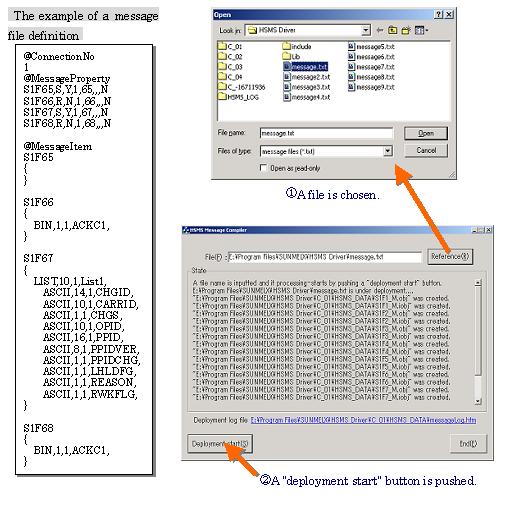

HSMS Message Compiler
About a HSMS Message Compiler
A HSMS message compiler is the program which compiles a message file and creates an object file.
The feature of a HSMS Message Compiler
The definition of a message can be simple, can be described briefly and can be compiled using a HSMS message compiler. An initial value can also be set up.

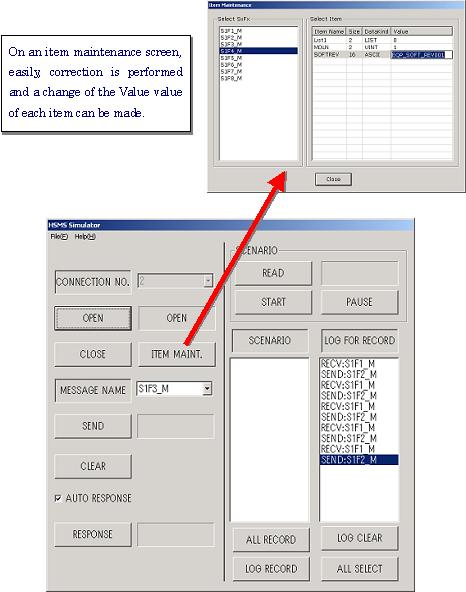

HSMS Simulator
About a HSMS Simulator
A HSMS simulator is the program which creates a scenario and performs a communication simulation.
The feature of a HSMS Simulator
By describing the message for a communication test beforehand to a scenario, an automatic test (repetition test) is possible. Moreover, since the interface is designed intelligibly,scenario creation can be easily performed only by mouse operation. There are also unctions,such as automatic response and manual response, automatic transmission, and manual transmission.

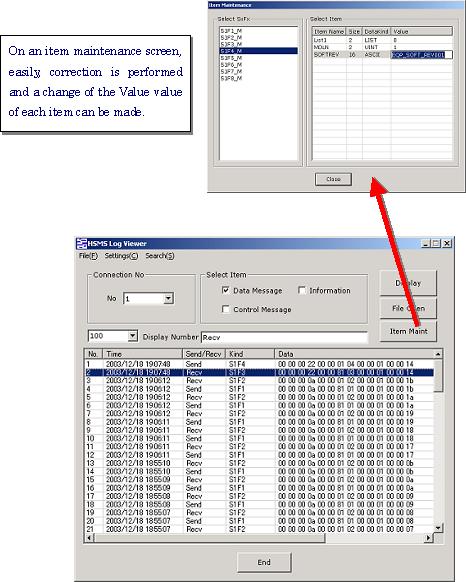

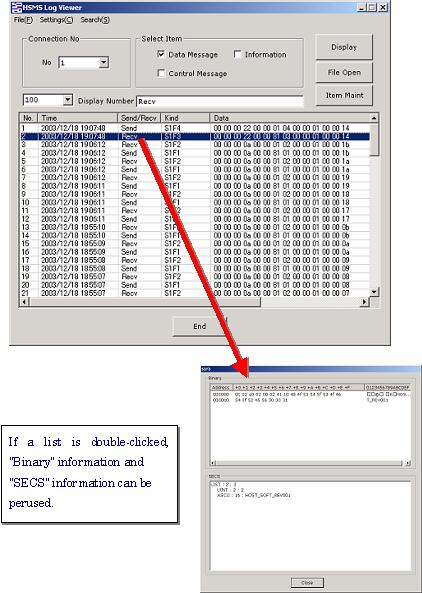

HSMS Log Viewer
About a HSMS Log Viewer
A HSMS log viewer is the program which displays a message log.
The feature of a HSMS Log Viewer
It is intelligible at easy operation and a log can be displayed.
